CURRENT LIMIT LOAD SWITCH

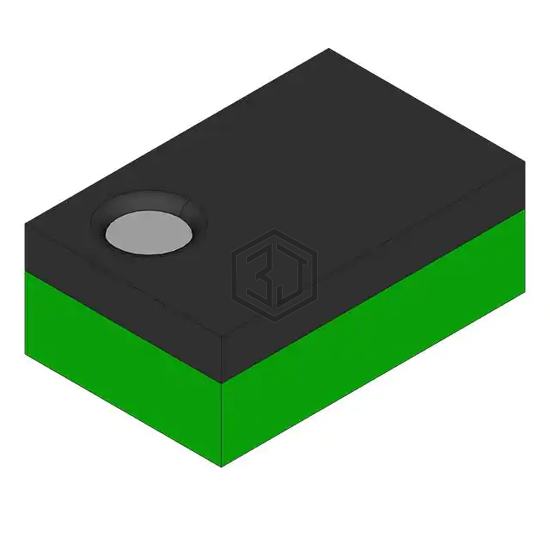

FPF2194 is a PMIC - Power Distribution Switches, Load Drivers manufactured by Fairchild Semiconductor. CURRENT LIMIT LOAD SWITCH. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) Not Required, package / case 6-UFBGA, WLCSP.
In Stock: 38,198
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | P-Channel |
| Interface | On/Off |
| Voltage - Load | 1.8V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 1.5A |
| Rds On (Typ) | 55mOhm |
| Input Type | Non-Inverting |
| Features | Status Flag |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, Reverse Current, UVLO |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-WLCSP (0.96x1.66) |
| Package / Case | 6-UFBGA, WLCSP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| FPF2165R | onsemi | IC PWR SWITCH P-CH 1:1 6MICROFET | 100% | View |
| AP2191WG-7 | Diodes Incorporated | IC PWR SWITCH P-CHAN 1:1 SOT25 | 93% | View |
| FPF1504BUCX | onsemi | IC PWR SWITCH P-CHAN 1:1 4WLCSP | 90% | View |
| FPF1504LUCX | onsemi | IC PWR SWITCH P-CHAN 1:1 4WLCSP | 90% | View |
| FPF1504LBUCX | Fairchild Semiconductor | POWER SUPPLY SUPPORT CIRCUIT | 90% | View |
| NX3P1108UKZ | NXP USA Inc. | IC PWR SWITCH P-CHAN 1:1 4WLCSP | 88% | View |
Submit your RFQ for FPF2194 and get a quote within 24 hours.
