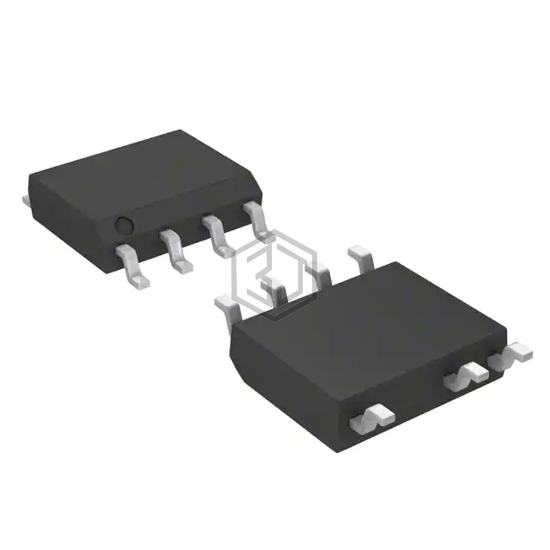

IC OFFLINE SWITCH FLYBACK 7SOIC
NCP1246BD100R2G is a PMIC - AC DC Converters, Offline Switchers manufactured by onsemi. IC OFFLINE SWITCH FLYBACK 7SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) 8.9V ~ 28V, package / case 8-SOIC (0.154", 3.90mm Width), 7 Leads.
In Stock: 2,820
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | 12 V |
| Voltage - Supply (Vcc/Vdd) | 8.9V ~ 28V |
| Duty Cycle | 80% |
| Frequency - Switching | 100kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Load, Over Power, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 8-SOIC (0.154", 3.90mm Width), 7 Leads |
| Supplier Device Package | 7-SOIC |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NCP12400BBHAA1DR2G | onsemi | IC OFFLINE SWITCH FLYBACK 7SOIC | 100% | View |
| TOP224G-TL | Power Integrations | IC OFFLINE SWITCH MULT TOP 8SMD | 100% | View |
| NCP1247BD100R2G | onsemi | IC OFFLINE SWITCH FLYBACK 7SOIC | 100% | View |
| LNK564DG | Power Integrations | IC OFFLINE SWITCH FLYBACK 8SO | 100% | View |
| NCP1234BD100R2G | onsemi | IC OFFLINE SWITCH FLYBACK 7SOIC | 99% | View |
| ICE3AR2280JGXUMA1 | Infineon Technologies | IC OFFLINE SWITCH FLYBACK 12DSO | 93% | View |
Submit your RFQ for NCP1246BD100R2G and get a quote within 24 hours.
