IC OFFLINE SWITCH FLYBACK 8SO

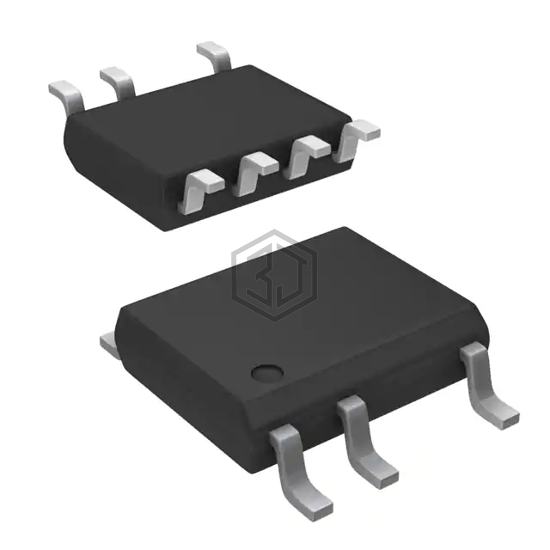

LNK564DG is a PMIC - AC DC Converters, Offline Switchers manufactured by Power Integrations. IC OFFLINE SWITCH FLYBACK 8SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case 8-SOIC (0.154", 3.90mm Width), 7 Leads, power (watts) 3 W.
In Stock: 5,210
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | - |
| Duty Cycle | 70% |
| Frequency - Switching | 100kHz |
| Power (Watts) | 3 W |
| Fault Protection | Current Limiting, Open Loop, Over Temperature, Short Circuit |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 8-SOIC (0.154", 3.90mm Width), 7 Leads |
| Supplier Device Package | SO-8C |
| Mounting Type | Surface Mount |
LNK564DG is Discontinued at Digi-Key. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NCP1234BD100R2G | onsemi | IC OFFLINE SWITCH FLYBACK 7SOIC | 100% | View |
| NCP1246BD100R2G | onsemi | IC OFFLINE SWITCH FLYBACK 7SOIC | 100% | View |
| NCP12400BBHAA1DR2G | onsemi | IC OFFLINE SWITCH FLYBACK 7SOIC | 100% | View |
| NCP1247BD100R2G | onsemi | IC OFFLINE SWITCH FLYBACK 7SOIC | 100% | View |
| TEA1751LT/N1,518 | NXP USA Inc. | IC OFFLINE SWITCH FLYBACK 16SO | 69% | View |
| ICE3AR2280JGXUMA1 | Infineon Technologies | IC OFFLINE SWITCH FLYBACK 12DSO | 68% | View |
Submit your RFQ for LNK564DG and get a quote within 24 hours.
