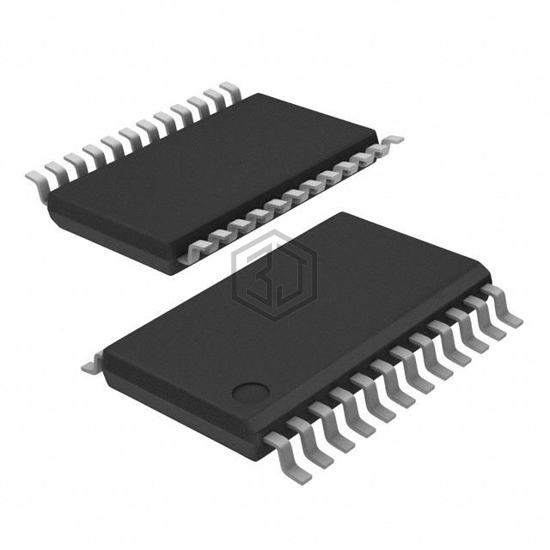

IC BRIDGE DRIVER PAR TSSOP-24
LV8013T-A-MPB-E is a PMIC - Full, Half-Bridge Drivers manufactured by onsemi. IC BRIDGE DRIVER PAR TSSOP-24. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 75°C (TA), voltage - supply 2.7V ~ 5.5V, package / case 24-TFSOP (0.173", 4.40mm Width).
In Stock: 2,522
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Half Bridge (2) |
| Applications | DC Motors, General Purpose |
| Interface | Logic |
| Load Type | Inductive |
| Technology | DMOS |
| Rds On (Typ) | 300mOhm |
| Current - Output / Channel | 1.2A |
| Current - Peak Output | 2A, 3.8A |
| Voltage - Supply | 2.7V ~ 5.5V |
| Voltage - Load | 2V ~ 15V |
| Operating Temperature | -20°C ~ 75°C (TA) |
| Features | - |
| Fault Protection | Over Temperature |
| Mounting Type | Surface Mount |
| Package / Case | 24-TFSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 24-TSSOP |
LV8013T-A-MPB-E is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LV8013T-A-TLM-E | Sanyo | FORWARD/REVERSE MOTOR DRIVER | 100% | View |
| AN41400A-PB | Panasonic Electronic Components | IC MOTOR DRIVER PAR 34HSOP | 100% | View |
| LA6584JA-ZH | onsemi | IC BRIDGE DRIVER ON/OFF SSOP20 | 93% | View |
| LA6584JA-AH | onsemi | IC MOTOR DRIVER ON/OFF 14HSSOP | 93% | View |
| LV8401V-TLM-E | onsemi | IC MOTOR DRIVER PAR 16SSOP | 90% | View |
| MAX256ASA+T | Analog Devices Inc./Maxim Integrated | IC DRVR H-BRIDGE 8-SOIC | 84% | View |
Submit your RFQ for LV8013T-A-MPB-E and get a quote within 24 hours.
