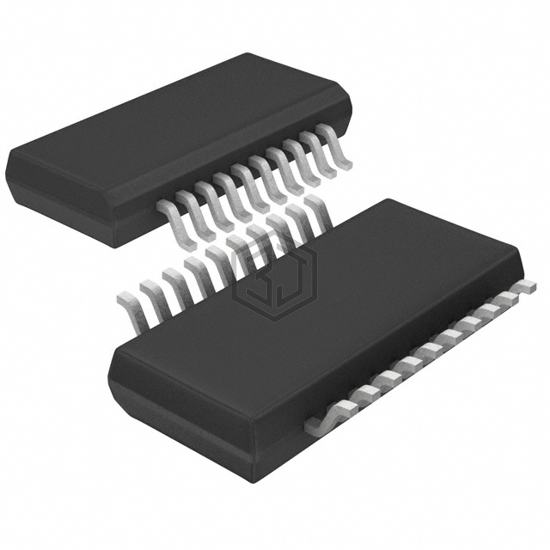

IC BRIDGE DRIVER ON/OFF SSOP20
LA6584JA-ZH is a PMIC - Full, Half-Bridge Drivers manufactured by onsemi. IC BRIDGE DRIVER ON/OFF SSOP20. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 90°C (TA), voltage - supply 2.8V ~ 14V, package / case 20-LSSOP (0.173", 4.40mm Width).
In Stock: 9,445
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Half Bridge (2) |
| Applications | DC Motors, General Purpose |
| Interface | Logic |
| Load Type | Inductive |
| Technology | Bipolar |
| Rds On (Typ) | - |
| Current - Output / Channel | 1.2A |
| Current - Peak Output | - |
| Voltage - Supply | 2.8V ~ 14V |
| Voltage - Load | 2.8V ~ 14V |
| Operating Temperature | -30°C ~ 90°C (TA) |
| Features | - |
| Fault Protection | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-LSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-SSOP |
LA6584JA-ZH is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LA6584JA-AH | onsemi | IC MOTOR DRIVER ON/OFF 14HSSOP | 100% | View |
| AP1013CEN | Asahi Kasei Microdevices/AKM | IC MOTOR DRIVER 18V 16QFN | 90% | View |
| MAX256ASA+T | Analog Devices Inc./Maxim Integrated | IC DRVR H-BRIDGE 8-SOIC | 90% | View |
| MAX256ASA/V+ | Analog Devices Inc./Maxim Integrated | 3W PRIMARY-SIDE TRANSFORMER H-BR | 90% | View |
| LA6584M-TLM-E | onsemi | IC BRIDGE DRIVER ON/OFF MFP16FS | 89% | View |
| LV11961HA-AH | onsemi | IC MOTOR DRIVER 18V 14HSSOP | 84% | View |
Submit your RFQ for LA6584JA-ZH and get a quote within 24 hours.
