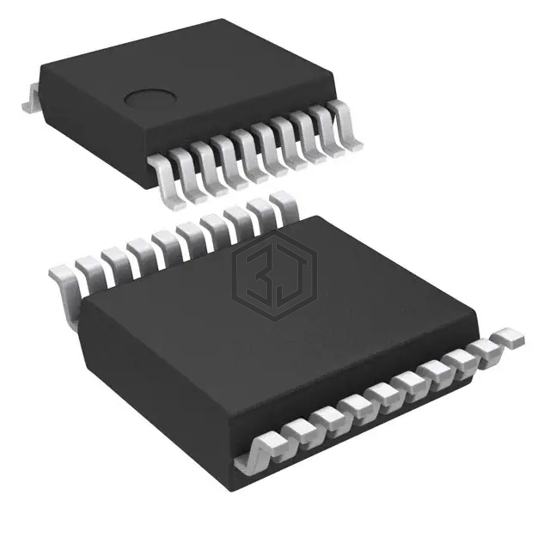

IC BRIDGE DRIVER PAR SSOP-20
LV8011V-MPB-E is a PMIC - Full, Half-Bridge Drivers manufactured by onsemi. IC BRIDGE DRIVER PAR SSOP-20. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 75°C (TA), voltage - supply 4.5V ~ 5.5V, package / case 20-LSSOP (0.173", 4.40mm Width).
In Stock: 1,109
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Half Bridge (2) |
| Applications | DC Motors, General Purpose |
| Interface | Logic |
| Load Type | Inductive |
| Technology | DMOS |
| Rds On (Typ) | 370mOhm |
| Current - Output / Channel | 1A |
| Current - Peak Output | 5A |
| Voltage - Supply | 4.5V ~ 5.5V |
| Voltage - Load | 2V ~ 6.5V |
| Operating Temperature | -20°C ~ 75°C (TA) |
| Features | - |
| Fault Protection | Over Temperature |
| Mounting Type | Surface Mount |
| Package / Case | 20-LSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-SSOP |
LV8011V-MPB-E is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX256ASA+T | Analog Devices Inc./Maxim Integrated | IC DRVR H-BRIDGE 8-SOIC | 86% | View |
| LV11961HA-AH | onsemi | IC MOTOR DRIVER 18V 14HSSOP | 86% | View |
| LA6584JA-AH | onsemi | IC MOTOR DRIVER ON/OFF 14HSSOP | 78% | View |
| BD6221F-E2 | Rohm Semiconductor | IC HALF BRIDGE DRIVER 1A 8SOP | 75% | View |
| LB1868M-TLM-H | onsemi | IC MOTOR DRIVER PAR 14MFP | 65% | View |
| L6201 | STMicroelectronics | IC MOTOR DRIVER PAR 20SOIC | 54% | View |
Submit your RFQ for LV8011V-MPB-E and get a quote within 24 hours.
