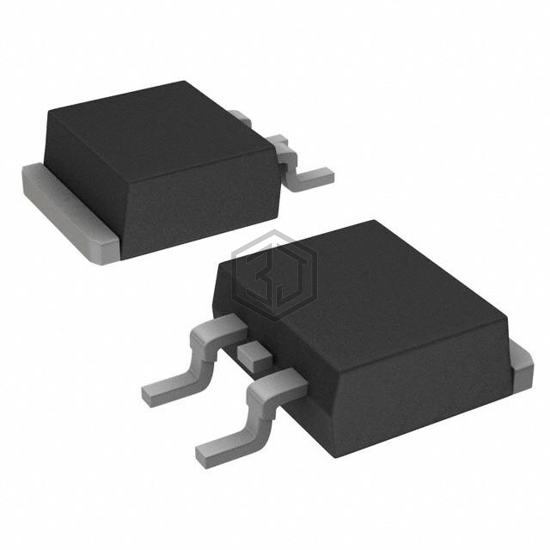

ECOSPARK1 IGN-IGBT TO263
ISL9V3040S3ST-F085C is a Transistors - IGBTs - Single manufactured by onsemi. ECOSPARK1 IGN-IGBT TO263. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB, current - collector (ic) (max) 21 A.
In Stock: 1,879
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 400 V |
| Current - Collector (Ic) (Max) | 21 A |
| Current - Collector Pulsed (Icm) | - |
| Vce(on) (Max) @ Vge, Ic | 1.65V @ 4V, 6A |
| Power - Max | 150 W |
| Switching Energy | - |
| Input Type | Logic |
| Gate Charge | 17 nC |
| Td (on/off) @ 25°C | 700ns/4.8µs |
| Test Condition | 14V, 1Ohm |
| Reverse Recovery Time (trr) | 2.1 µs |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | D²PAK-3 (TO-263-3) |
Submit your RFQ for ISL9V3040S3ST-F085C and get a quote within 24 hours.
