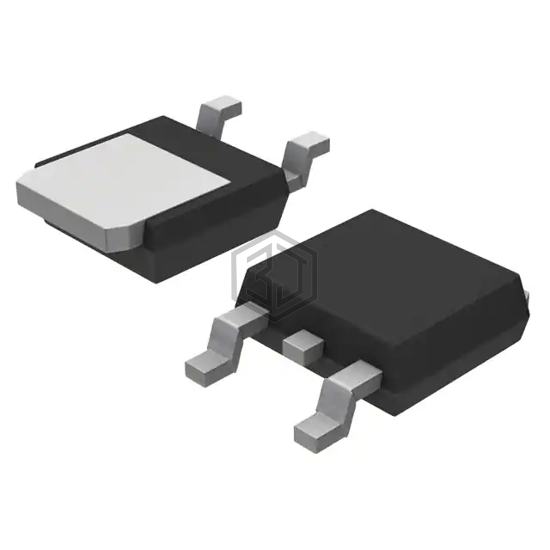

ECOSPARK1 IGN IGBT TO252
ISL9V3040D3STV is a Transistors - IGBTs - Single manufactured by onsemi. ECOSPARK1 IGN IGBT TO252. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63, current - collector (ic) (max) 21 A.
In Stock: 1,091
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 400 V |
| Current - Collector (Ic) (Max) | 21 A |
| Current - Collector Pulsed (Icm) | - |
| Vce(on) (Max) @ Vge, Ic | 1.65V @ 4V, 6A |
| Power - Max | 150 W |
| Switching Energy | - |
| Input Type | Logic |
| Gate Charge | 17 nC |
| Td (on/off) @ 25°C | 700ns/4.8µs |
| Test Condition | 300V, 6.5A, 470Ohm, 5V |
| Reverse Recovery Time (trr) | 2.1 µs |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | DPAK |
Submit your RFQ for ISL9V3040D3STV and get a quote within 24 hours.
