IGBT, 430V, 10A, 1.95V, 200MJ, D

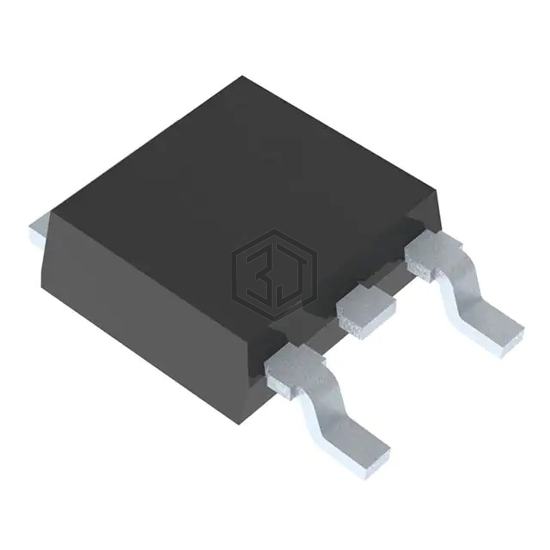

ISL9V2040D3STV is a Transistors - IGBTs - Single manufactured by onsemi. IGBT, 430V, 10A, 1.95V, 200MJ, D. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 175°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63, current - collector (ic) (max) 10 A.
In Stock: 6,973
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 430 V |
| Current - Collector (Ic) (Max) | 10 A |
| Current - Collector Pulsed (Icm) | - |
| Vce(on) (Max) @ Vge, Ic | 1.9V @ 4V, 6A |
| Power - Max | 130 W |
| Switching Energy | - |
| Input Type | Logic |
| Gate Charge | 12 nC |
| Td (on/off) @ 25°C | 610ns/3.64µs |
| Test Condition | - |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | TO-252AA |
Submit your RFQ for ISL9V2040D3STV and get a quote within 24 hours.
