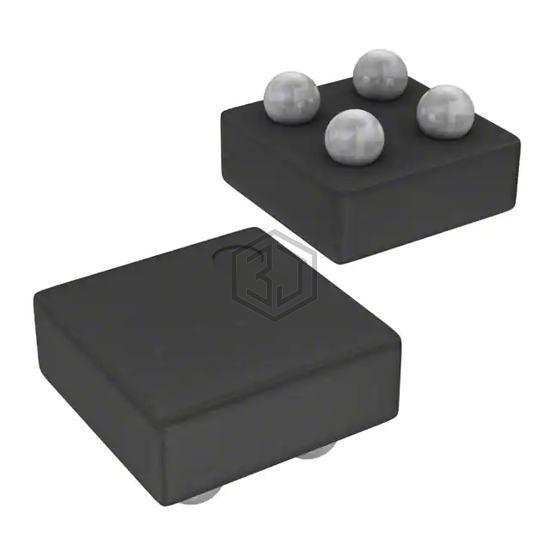

IC SWITCH SPST SINGLE 4WLCSP
FSA515UCX is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by onsemi. IC SWITCH SPST SINGLE 4WLCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 4-XFBGA, WLCSP, number of circuits 1.
In Stock: 301
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 1.1Ohm |
| Channel-to-Channel Matching (ΔRon) | 1.1mOhm |
| Voltage - Supply, Single (V+) | 2.5V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 250µs, 85µs (Typ) |
| -3db Bandwidth | 367MHz |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 17pF |
| Current - Leakage (IS(off)) (Max) | 650nA |
| Crosstalk | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 4-XFBGA, WLCSP |
| Supplier Device Package | 4-WLCSP (0.82x0.82) |
