0.4 LOW RESISTANCE AND CAPACITAN

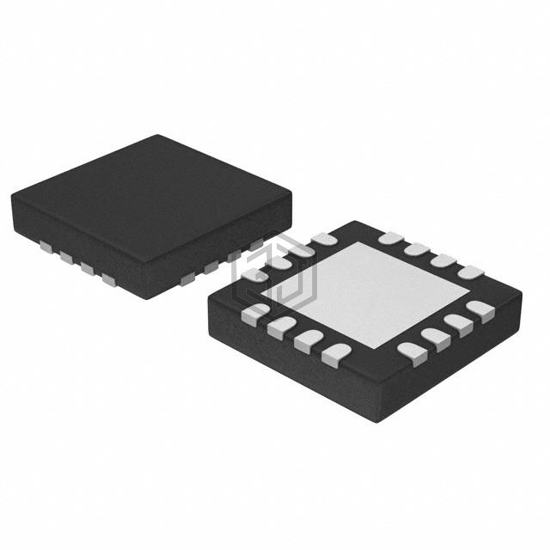

DG2524DN-T1-GE4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. 0.4 LOW RESISTANCE AND CAPACITAN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 16-VFQFN Exposed Pad, number of circuits 4.
In Stock: 2,475
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 1:2 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 550mOhm |
| Channel-to-Channel Matching (ΔRon) | 50mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | 1.8V ~ 5.5V |
| Switch Time (Ton, Toff) (Max) | 60µs, 1µs |
| -3db Bandwidth | 310MHz |
| Charge Injection | -19pC |
| Channel Capacitance (CS(off), CD(off)) | 14.5pF |
| Current - Leakage (IS(off)) (Max) | 1nA |
| Crosstalk | -89dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (3x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| DG2523DN-T1-GE4 | Vishay Siliconix | IC SWITCH DUAL SPDT 16QFN | 93% | View |
| DG2525DN-T1-GE4 | Vishay Siliconix | IC SWITCH DUAL DPDT 16-MINIQFN | 93% | View |
| DGQ2788AEN-T1-GE4 | Vishay Siliconix | IC SWITCH QD SPDT MINIQFN-16 | 87% | View |
| DG2788ADN-T1-GE4 | Vishay Siliconix | IC ANLG SW 2CH DPDT 16MINI QFN | 73% | View |
| DG2788ADN-T1-E4 | Vishay Siliconix | IC SWITCH DUAL DPDT MINIQFN16 | 73% | View |
| MAX14777GTP+ | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 20TQFN | 71% | View |
Submit your RFQ for DG2524DN-T1-GE4 and get a quote within 24 hours.
