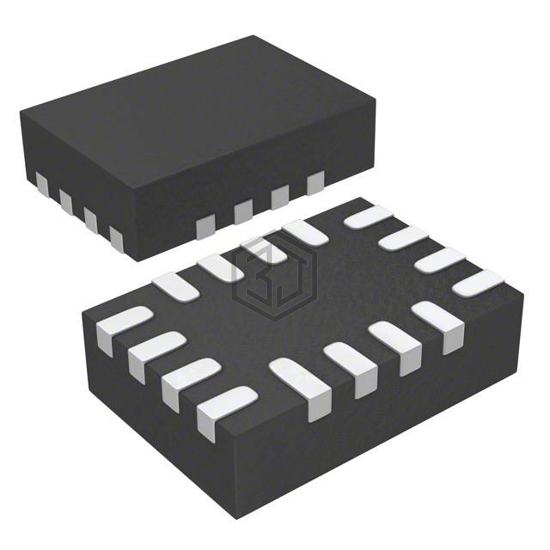

IC SWITCH QD SPDT MINIQFN-16
DGQ2788AEN-T1-GE4 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Vishay Siliconix. IC SWITCH QD SPDT MINIQFN-16. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 16-UFQFN, number of circuits 2.
In Stock: 6,142
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | DPDT |
| Multiplexer/Demultiplexer Circuit | 2:2 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 500mOhm |
| Channel-to-Channel Matching (ΔRon) | 50mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 50µs, 1µs |
| -3db Bandwidth | 338MHz |
| Charge Injection | -245pC |
| Channel Capacitance (CS(off), CD(off)) | - |
| Current - Leakage (IS(off)) (Max) | - |
| Crosstalk | -61dB @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-UFQFN |
| Supplier Device Package | 16-miniQFN (1.8x2.6) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TMUX4157NDCKR | Texas Instruments | 2- LOW RON, -12-V, 2:1 (SPDT) GE | 73% | View |
| ADG5401FBCPZ-RL7 | Analog Devices Inc. | 60V OV PROTECTED HV SPSTX1 SWITC | 51% | View |
Submit your RFQ for DGQ2788AEN-T1-GE4 and get a quote within 24 hours.
