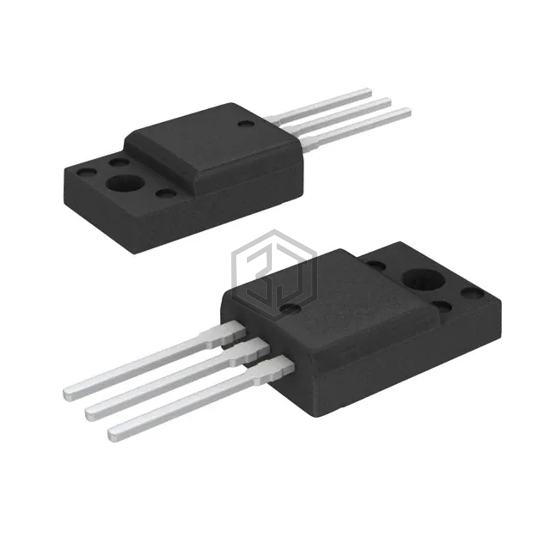

IGBT 600V 30A 42W TO-220F
FGPF15N60UNDF is a Transistors - IGBTs - Single manufactured by onsemi. IGBT 600V 30A 42W TO-220F. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-220-3 Full Pack, current - collector (ic) (max) 30 A.
In Stock: 6,050
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| IGBT Type | NPT |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 30 A |
| Current - Collector Pulsed (Icm) | 45 A |
| Vce(on) (Max) @ Vge, Ic | 2.7V @ 15V, 15A |
| Power - Max | 42 W |
| Switching Energy | 370µJ (on), 67µJ (off) |
| Input Type | Standard |
| Gate Charge | 43 nC |
| Td (on/off) @ 25°C | 9.3ns/54.8ns |
| Test Condition | 400V, 15A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 82.4 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 Full Pack |
| Supplier Device Package | TO-220F-3 |
