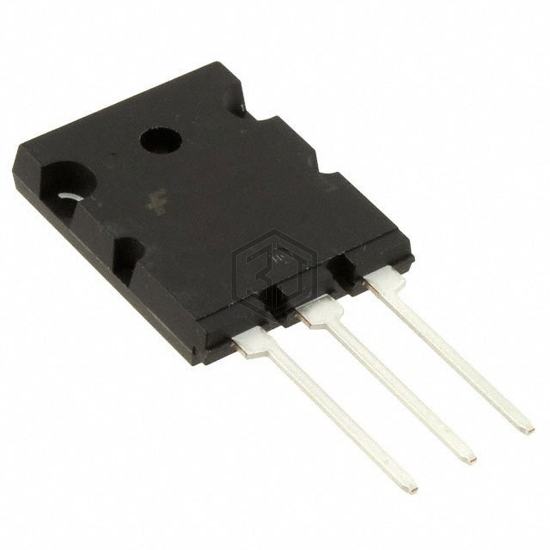

IGBT 1000V 60A 180W TO264
FGL60N100BNTDTU is a Transistors - IGBTs - Single manufactured by onsemi. IGBT 1000V 60A 180W TO264. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-264-3, TO-264AA, current - collector (ic) (max) 60 A.
In Stock: 4,908
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| IGBT Type | NPT and Trench |
| Voltage - Collector Emitter Breakdown (Max) | 1000 V |
| Current - Collector (Ic) (Max) | 60 A |
| Current - Collector Pulsed (Icm) | 120 A |
| Vce(on) (Max) @ Vge, Ic | 2.9V @ 15V, 60A |
| Power - Max | 180 W |
| Switching Energy | - |
| Input Type | Standard |
| Gate Charge | 275 nC |
| Td (on/off) @ 25°C | 140ns/630ns |
| Test Condition | 600V, 60A, 51Ohm, 15V |
| Reverse Recovery Time (trr) | 1.2 µs |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-264-3, TO-264AA |
| Supplier Device Package | TO-264-3 |
Submit your RFQ for FGL60N100BNTDTU and get a quote within 24 hours.
