IGBT TRENCH/FS 1200V 70A TO264-3

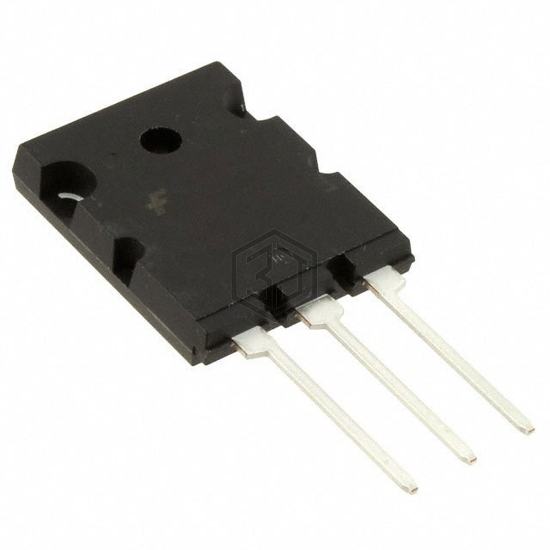

FGL35N120FTDTU is a Transistors - IGBTs - Single manufactured by onsemi. IGBT TRENCH/FS 1200V 70A TO264-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-264-3, TO-264AA, current - collector (ic) (max) 70 A.
In Stock: 3,113
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 70 A |
| Current - Collector Pulsed (Icm) | 105 A |
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 35A |
| Power - Max | 368 W |
| Switching Energy | 2.5mJ (on), 1.7mJ (off) |
| Input Type | Standard |
| Gate Charge | 210 nC |
| Td (on/off) @ 25°C | 34ns/172ns |
| Test Condition | 600V, 35A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 337 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-264-3, TO-264AA |
| Supplier Device Package | TO-264-3 |
Submit your RFQ for FGL35N120FTDTU and get a quote within 24 hours.
