650V/75 FAST IGBT FSIII T

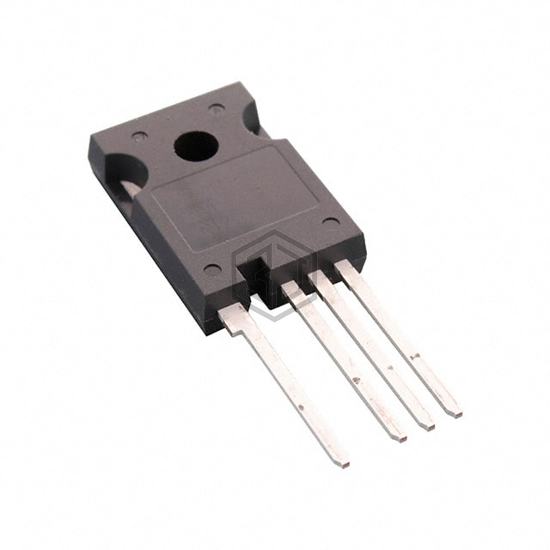

FGH75T65SQDNL4 is a Transistors - IGBTs - Single manufactured by onsemi. 650V/75 FAST IGBT FSIII T. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-4, current - collector (ic) (max) 200 A.
In Stock: 3,580
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector (Ic) (Max) | 200 A |
| Current - Collector Pulsed (Icm) | 200 A |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 75A |
| Power - Max | 375 W |
| Switching Energy | 1.25mJ (on), 1.26mJ (off) |
| Input Type | Standard |
| Gate Charge | 152 nC |
| Td (on/off) @ 25°C | 44ns/208ns |
| Test Condition | 400V, 75A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 134 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-4 |
| Supplier Device Package | TO-247-4L |
Submit your RFQ for FGH75T65SQDNL4 and get a quote within 24 hours.
