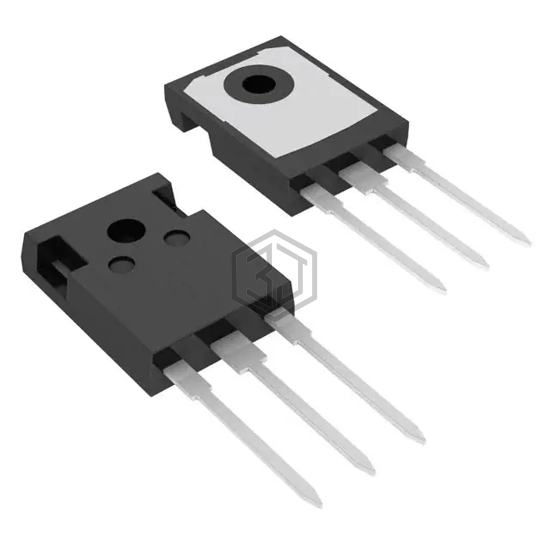

IGBT FIELD STOP 600V 120A TO247
FGH60N60SMD is a Transistors - IGBTs - Single manufactured by onsemi. IGBT FIELD STOP 600V 120A TO247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-3, current - collector (ic) (max) 120 A.
In Stock: 218
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 120 A |
| Current - Collector Pulsed (Icm) | 180 A |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 60A |
| Power - Max | 600 W |
| Switching Energy | 1.26mJ (on), 450µJ (off) |
| Input Type | Standard |
| Gate Charge | 189 nC |
| Td (on/off) @ 25°C | 18ns/104ns |
| Test Condition | 400V, 60A, 3Ohm, 15V |
| Reverse Recovery Time (trr) | 39 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247-3 |
Submit your RFQ for FGH60N60SMD and get a quote within 24 hours.
