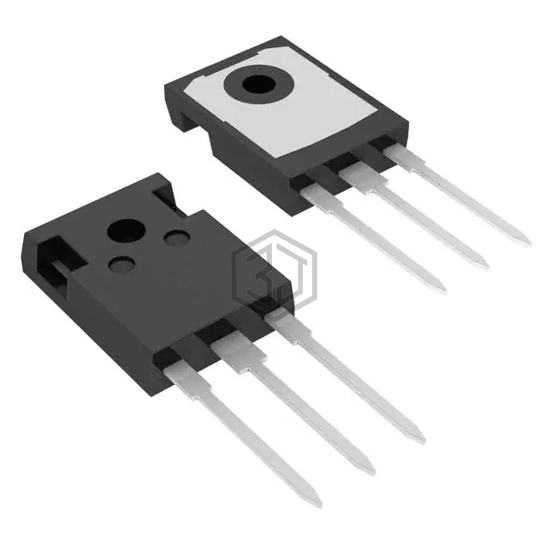

IGBT 600V 75A TO247-3
FGH50N6S2D is a Transistors - IGBTs - Single manufactured by onsemi. IGBT 600V 75A TO247-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3, current - collector (ic) (max) 75 A.
In Stock: 70
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 75 A |
| Current - Collector Pulsed (Icm) | 240 A |
| Vce(on) (Max) @ Vge, Ic | 2.7V @ 15V, 30A |
| Power - Max | 463 W |
| Switching Energy | 260µJ (on), 250µJ (off) |
| Input Type | Standard |
| Gate Charge | 70 nC |
| Td (on/off) @ 25°C | 13ns/55ns |
| Test Condition | 390V, 30A, 3Ohm, 15V |
| Reverse Recovery Time (trr) | 55 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247-3 |
Submit your RFQ for FGH50N6S2D and get a quote within 24 hours.
