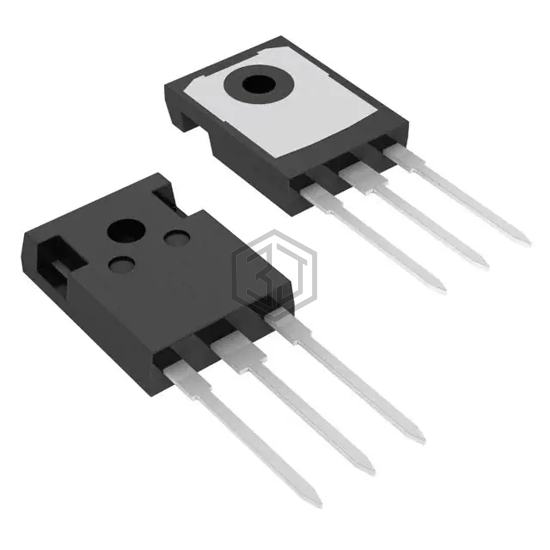

IGBT PT 300V 75A TO247-3
FGH50N3 is a Transistors - IGBTs - Single manufactured by onsemi. IGBT PT 300V 75A TO247-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3, current - collector (ic) (max) 75 A.
In Stock: 9,767
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | PT |
| Voltage - Collector Emitter Breakdown (Max) | 300 V |
| Current - Collector (Ic) (Max) | 75 A |
| Current - Collector Pulsed (Icm) | 240 A |
| Vce(on) (Max) @ Vge, Ic | 1.4V @ 15V, 30A |
| Power - Max | 463 W |
| Switching Energy | 130µJ (on), 92µJ (off) |
| Input Type | Standard |
| Gate Charge | 180 nC |
| Td (on/off) @ 25°C | 20ns/135ns |
| Test Condition | 180V, 30A, 5Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247-3 |
Submit your RFQ for FGH50N3 and get a quote within 24 hours.
