IGBT 1200V 40A UFS FOR SO

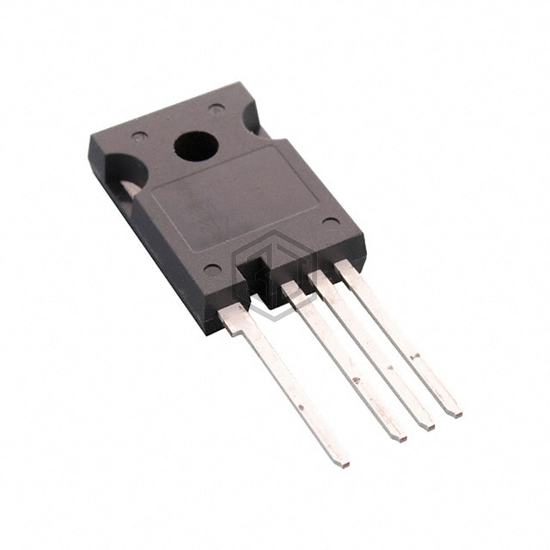

FGH40T120SQDNL4 is a Transistors - IGBTs - Single manufactured by onsemi. IGBT 1200V 40A UFS FOR SO. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-247-4, current - collector (ic) (max) 160 A.
In Stock: 3,240
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 160 A |
| Current - Collector Pulsed (Icm) | 160 A |
| Vce(on) (Max) @ Vge, Ic | 1.95V @ 15V, 40A |
| Power - Max | 454 W |
| Switching Energy | 1.4mJ (on), 1.1mJ (off) |
| Input Type | Standard |
| Gate Charge | 221 nC |
| Td (on/off) @ 25°C | 46ns/220ns |
| Test Condition | 600V, 40A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 166 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-4 |
| Supplier Device Package | TO-247-4L |
Submit your RFQ for FGH40T120SQDNL4 and get a quote within 24 hours.
