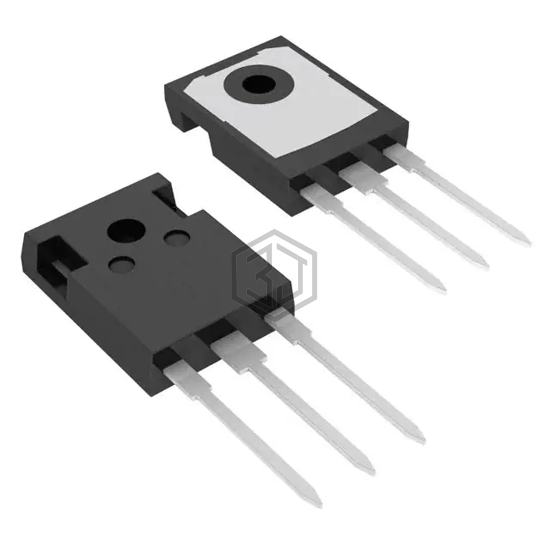

IGBT FIELD STOP 650V 80A TO247-3
FGH40N65UFDTU is a Transistors - IGBTs - Single manufactured by onsemi. IGBT FIELD STOP 650V 80A TO247-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3, current - collector (ic) (max) 80 A.
In Stock: 2,144
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| IGBT Type | Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector (Ic) (Max) | 80 A |
| Current - Collector Pulsed (Icm) | 120 A |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 40A |
| Power - Max | 290 W |
| Switching Energy | 1.19mJ (on), 460µJ (off) |
| Input Type | Standard |
| Gate Charge | 120 nC |
| Td (on/off) @ 25°C | 24ns/112ns |
| Test Condition | 400V, 40A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 45 ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247-3 |
Submit your RFQ for FGH40N65UFDTU and get a quote within 24 hours.
