IGBT 1200V 5A FS3 DPAK

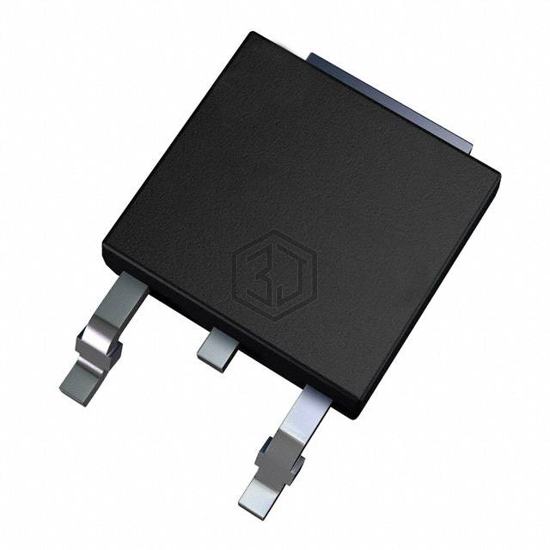

FGD5T120SH is a Transistors - IGBTs - Single manufactured by onsemi. IGBT 1200V 5A FS3 DPAK. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63, current - collector (ic) (max) 10 A.
In Stock: 2,792
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector (Ic) (Max) | 10 A |
| Current - Collector Pulsed (Icm) | 12.5 A |
| Vce(on) (Max) @ Vge, Ic | 3.6V @ 15V, 5A |
| Power - Max | 69 W |
| Switching Energy | 247µJ (on), 94µJ (off) |
| Input Type | Standard |
| Gate Charge | 6.7 nC |
| Td (on/off) @ 25°C | 4.8ns/24.8ns |
| Test Condition | 600V, 5A, 30Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | TO-252AA |
