ECOSPARK IGNITION IGBT

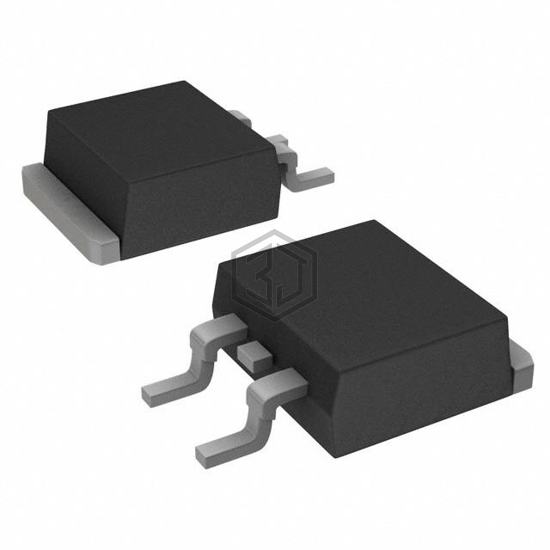

FGB3056-F085 is a Transistors - IGBTs - Single manufactured by onsemi. ECOSPARK IGNITION IGBT. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 175°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB, current - collector (ic) (max) 29 A.
In Stock: 551
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 29 A |
| Current - Collector Pulsed (Icm) | - |
| Vce(on) (Max) @ Vge, Ic | 1.55V @ 5V, 8A |
| Power - Max | 200 W |
| Switching Energy | - |
| Input Type | Logic |
| Gate Charge | 20 nC |
| Td (on/off) @ 25°C | 1.3µs/8.2µs |
| Test Condition | - |
| Reverse Recovery Time (trr) | 2.4 µs |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | D²PAK-3 (TO-263-3) |
Submit your RFQ for FGB3056-F085 and get a quote within 24 hours.
