650V 40A FS4 SA IGBT

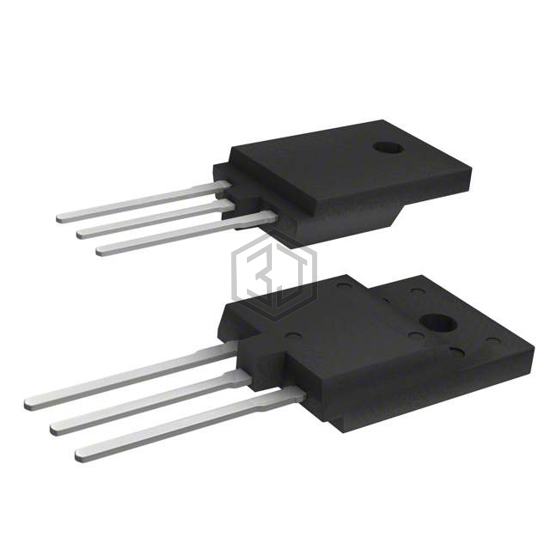

FGAF40S65AQ is a Transistors - IGBTs - Single manufactured by onsemi. 650V 40A FS4 SA IGBT. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-3P-3 Full Pack, current - collector (ic) (max) 80 A.
In Stock: 9,773
| Attribute | Value |
|---|---|
| Product Status | Active |
| IGBT Type | Trench Field Stop |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector (Ic) (Max) | 80 A |
| Current - Collector Pulsed (Icm) | 160 A |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 40A |
| Power - Max | 94 W |
| Switching Energy | 132µJ (on), 62µJ (off) |
| Input Type | Standard |
| Gate Charge | 75 nC |
| Td (on/off) @ 25°C | 17.8ns/81.6ns |
| Test Condition | 400V, 10A, 6Ohm, 15V |
| Reverse Recovery Time (trr) | 274 ns |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-3P-3 Full Pack |
| Supplier Device Package | TO-3PF-3 |
Submit your RFQ for FGAF40S65AQ and get a quote within 24 hours.
