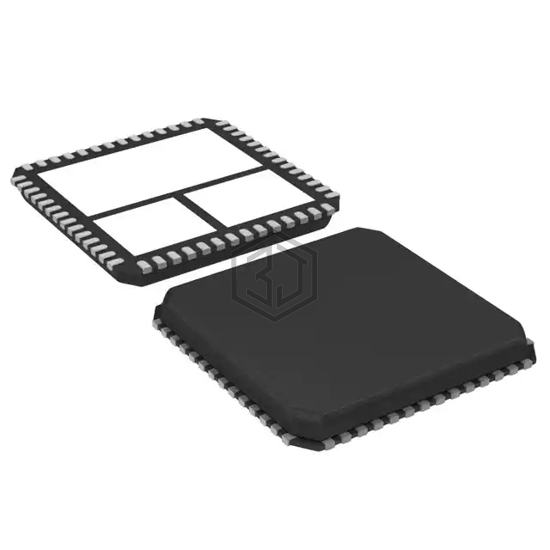

IC REG BUCK SYNC ADJ 25A 56HVQFN
PIP213-12M,518 is a PMIC - Full, Half-Bridge Drivers manufactured by NXP USA Inc.. IC REG BUCK SYNC ADJ 25A 56HVQFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), voltage - supply 3.3V ~ 16V, package / case 56-VFQFN Exposed Pad.
In Stock: 1,085
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Half Bridge |
| Applications | Synchronous Buck Converters |
| Interface | PWM |
| Load Type | Inductive |
| Technology | DrMOS |
| Rds On (Typ) | 3.8mOhm LS, 6.5mOhm HS |
| Current - Output / Channel | 25A |
| Current - Peak Output | 40A |
| Voltage - Supply | 3.3V ~ 16V |
| Voltage - Load | 24V (Max) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Features | Bootstrap Circuit, 5V Regulated Output |
| Fault Protection | Over Temperature, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 56-VFQFN Exposed Pad |
| Supplier Device Package | 56-HVQFN (8x8) |
PIP213-12M,518 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PIP212-12M,518 | NXP USA Inc. | IC REG BUCK SYNC ADJ 35A 56HVQFN | 84% | View |
| PIP202-12M-2,518 | NXP USA Inc. | IC REG BUCK SYNC ADJ 25A 68HVQFN | 77% | View |
| FDMF6700 | Fairchild Semiconductor | HALF BRIDGE BASED MOSFET DRIVER | 66% | View |
| FDMF8704V | Fairchild Semiconductor | HALF BRIDGE BASED MOSFET DRIVER | 65% | View |
| FDMF8704 | Fairchild Semiconductor | HALF BRIDGE BASED MOSFET DRIVER, | 65% | View |
| FDMF6704 | Fairchild Semiconductor | HALF BRIDGE BASED MOSFET DRIVER, | 54% | View |
