HALF BRIDGE BASED MOSFET DRIVER

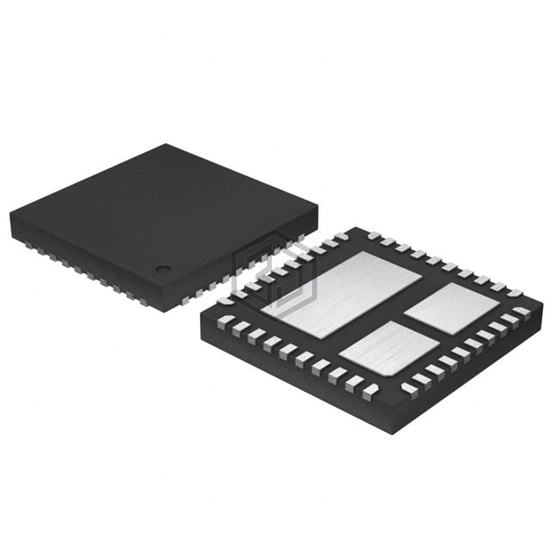

FDMF6700 is a PMIC - Full, Half-Bridge Drivers manufactured by Fairchild Semiconductor. HALF BRIDGE BASED MOSFET DRIVER. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), voltage - supply 6.4V ~ 13.5V, package / case 40-WFQFN Exposed Pad.
In Stock: 9,000
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Half Bridge |
| Applications | Synchronous Buck Converters |
| Interface | PWM |
| Load Type | Inductive |
| Technology | DrMOS |
| Rds On (Typ) | - |
| Current - Output / Channel | 25A |
| Current - Peak Output | 65A |
| Voltage - Supply | 6.4V ~ 13.5V |
| Voltage - Load | 6.4V ~ 14V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Features | Bootstrap Circuit |
| Fault Protection | Shoot-Through, UVLO |
| Mounting Type | Surface Mount |
| Package / Case | 40-WFQFN Exposed Pad |
| Supplier Device Package | Power66 |
FDMF6700 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| FDMF8700 | Fairchild Semiconductor | HALF BRIDGE BASED MOSFET DRIVER | 94% | View |
| FDMF8705 | Fairchild Semiconductor | HALF BRIDGE BASED MOSFET DRIVER | 90% | View |
| FDMF8704V | Fairchild Semiconductor | HALF BRIDGE BASED MOSFET DRIVER | 86% | View |
| FDMF8704 | Fairchild Semiconductor | HALF BRIDGE BASED MOSFET DRIVER, | 86% | View |
| NCP5369MNTWG | onsemi | IC REG BUCK SYNC 35A | 76% | View |
| FDMF6704 | Fairchild Semiconductor | HALF BRIDGE BASED MOSFET DRIVER, | 72% | View |
Submit your RFQ for FDMF6700 and get a quote within 24 hours.
