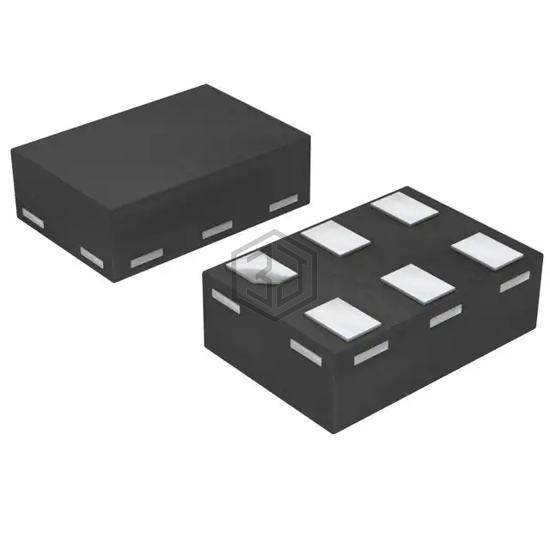

IC ANALOG SWITCH SPDT XSON6
NX3L1T5157GMZ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by NXP USA Inc.. IC ANALOG SWITCH SPDT XSON6. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 6-XFDFN, number of circuits 1.
In Stock: 9,856
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 900mOhm |
| Channel-to-Channel Matching (ΔRon) | 100mOhm |
| Voltage - Supply, Single (V+) | 1.4V ~ 4.3V |
| Voltage - Supply, Dual (V±) | 1.4V ~ 4.3V |
| Switch Time (Ton, Toff) (Max) | 40ns, 20ns |
| -3db Bandwidth | 60MHz |
| Charge Injection | 15pC |
| Channel Capacitance (CS(off), CD(off)) | 35pF |
| Current - Leakage (IS(off)) (Max) | 10nA |
| Crosstalk | - |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 6-XFDFN |
| Supplier Device Package | 6-XSON, SOT886 (1.45x1) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NX3L4357GM,115 | NXP USA Inc. | IC ANALOG SWITCH SP3T 10XQFN | 100% | View |
| NX3L1T5157GM,132 | NXP USA Inc. | IC ANALOG SWITCH SPDT XSON6 | 100% | View |
| NX3L2267GM,115 | NXP USA Inc. | IC ANALOG SWITCH SPDT 10XQFN | 94% | View |
| SN74HC4852QPWRQ1 | Texas Instruments | IC MUX/DEMUX DUAL 4X1 16TSSOP | 61% | View |
| 74HC4852PW-Q100,11 | Nexperia USA Inc. | IC MUX/DEMUX DUAL 4CH 16TSSOP | 51% | View |
| 74HC4852D-Q100,118 | Nexperia USA Inc. | IC MUX/DEMUX DUAL 4CH 16SOIC | 51% | View |
Submit your RFQ for NX3L1T5157GMZ and get a quote within 24 hours.
