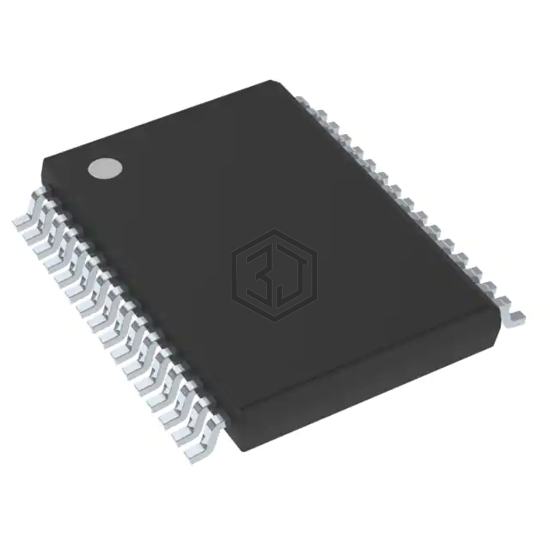

IC PWR SWITCH N-CHAN 1:1 32HSOP
MC17XSF500EKR2 is a PMIC - Power Distribution Switches, Load Drivers manufactured by NXP USA Inc.. IC PWR SWITCH N-CHAN 1:1 32HSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 4.5V ~ 5.5V, package / case 32-SSOP (0.295", 7.50mm Width) Exposed Pad.
In Stock: 6,357
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Type | General Purpose |
| Number of Outputs | 5 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | SPI |
| Voltage - Load | 7V ~ 18V |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Current - Output (Max) | 5.5A |
| Rds On (Typ) | 17mOhm |
| Input Type | - |
| Features | - |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 32-HSOP |
| Package / Case | 32-SSOP (0.295", 7.50mm Width) Exposed Pad |
MC17XSF500EKR2 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MC17XSF500EK | Freescale Semiconductor | HIGH-SIDE SWITCH, 18V, PENTA 17M | 100% | View |
| MC07XS6517DEKR2 | NXP USA Inc. | IC PWR SWITCH N-CHAN 1:1 54HSOP | 97% | View |
| MC07XSF517EK | Freescale Semiconductor | HIGH-SIDE SWITCH, 18V, TRIPLE 7M | 97% | View |
| MC08XSF421EK | Freescale Semiconductor | HIGH-SIDE SWITCH, 12V, DUAL 8MOH | 96% | View |
| BTS5016SDAAUMA1 | Infineon Technologies | IC PWR SWITCH N-CHAN 1:1 TO252-5 | 67% | View |
| TPS2559QWDRCTQ1 | Texas Instruments | IC PWR SWITCH N-CHAN 1:1 10VSON | 53% | View |
