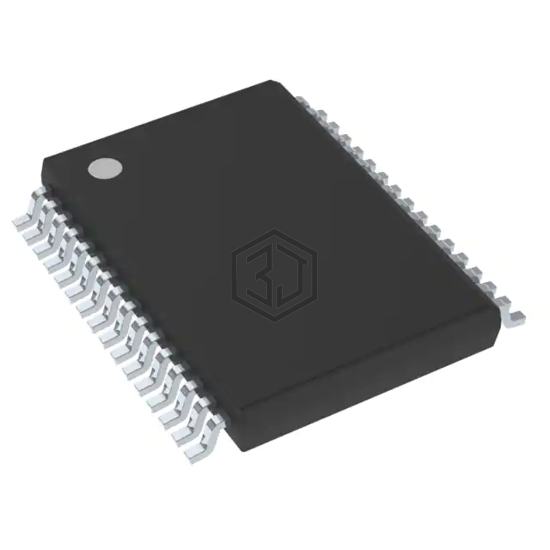

HIGH-SIDE SWITCH, 18V, PENTA 17M
MC17XSF500EK is a PMIC - Power Distribution Switches, Load Drivers manufactured by Freescale Semiconductor. HIGH-SIDE SWITCH, 18V, PENTA 17M. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 4.5V ~ 5.5V, package / case 32-SSOP (0.295", 7.50mm Width) Exposed Pad.
In Stock: 2,579
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Type | General Purpose |
| Number of Outputs | 5 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | SPI |
| Voltage - Load | 7V ~ 18V |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Current - Output (Max) | 5.5A |
| Rds On (Typ) | 17mOhm |
| Input Type | - |
| Features | - |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 32-HSOP |
| Package / Case | 32-SSOP (0.295", 7.50mm Width) Exposed Pad |
