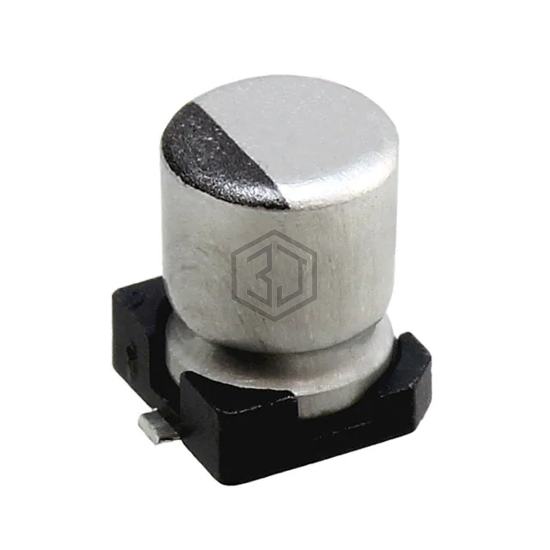

CAP ALUM 4.7UF 20% 35V SMD
UWG1V4R7MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4.7UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 8,119
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | - |
| Ratings | AEC-Q200 |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 30 mA @ 120 Hz |
| Ripple Current @ High Frequency | 60 mA @ 100 kHz |
| Impedance | 3 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 35SZV4.7M4X5.5 | Rubycon | CAP ALUM 4.7UF 20% 35V SMD | 94% | View |
| UUD1V4R7MCL1GS | Nichicon | CAP ALUM 4.7UF 20% 35V SMD | 84% | View |
| 475SMH035M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 4.7UF 20% 35V SMD | 78% | View |
| AVEZ475M50C12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 4.7UF 20% 50V SMD | 78% | View |
| ATB475M035 | Cornell Dubilier / Illinois Capacitor | CAP ALUM 4.7UF 20% 35V SMD | 71% | View |
| UUP1H4R7MCL1GS | Nichicon | CAP ALUM 4.7UF 20% 50V SMD | 63% | View |
Submit your RFQ for UWG1V4R7MCL1GB and get a quote within 24 hours.
