Cornell Dubilier / Illinois Capacitor

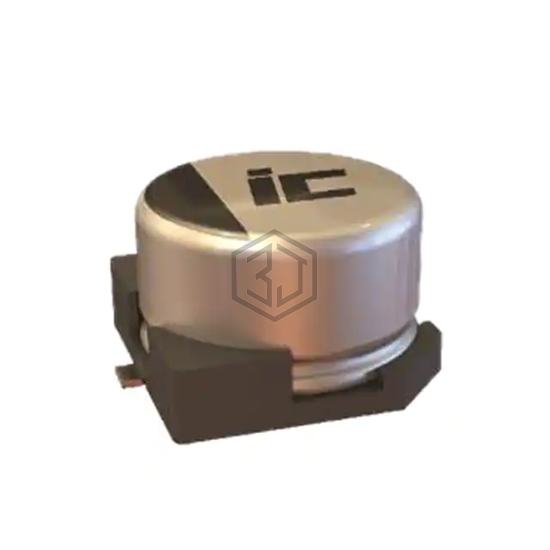

CAP ALUM 4.7UF 20% 35V SMD
ATB475M035 is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 4.7UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 7,363
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 33.86Ohm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | Bypass, Decoupling |
| Ripple Current @ Low Frequency | 63 mA @ 120 Hz |
| Ripple Current @ High Frequency | 90 mA @ 100 kHz |
| Impedance | 1.93 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.224" (5.70mm) |
| Surface Mount Land Size | 0.169" L x 0.189" W (4.30mm x 4.80mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUD1V4R7MCL1GS | Nichicon | CAP ALUM 4.7UF 20% 35V SMD | 87% | View |
| 475AXZ035M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 4.7UF 20% 35V SMD | 87% | View |
| 475SMH050MQ5 | Cornell Dubilier / Illinois Capacitor | CAP ALUM 4.7UF 20% 50V SMD | 77% | View |
| UWG1V4R7MCL1GB | Nichicon | CAP ALUM 4.7UF 20% 35V SMD | 71% | View |
| 35SZV4.7M4X5.5 | Rubycon | CAP ALUM 4.7UF 20% 35V SMD | 65% | View |
| AVEZ475M50C12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 4.7UF 20% 50V SMD | 64% | View |
