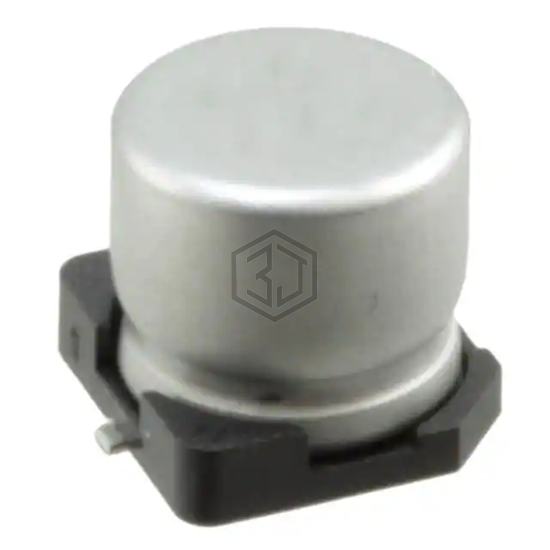

CAP ALUM 4.7UF 20% 50V SMD
UUP1H4R7MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4.7UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 1,467
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 20 mA @ 120 Hz |
| Ripple Current @ High Frequency | 30 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 475SMH050MQ5 | Cornell Dubilier / Illinois Capacitor | CAP ALUM 4.7UF 20% 50V SMD | 100% | View |
| 50SKV4.7M5X5.5 | Rubycon | CAP ALUM 4.7UF 20% 50V SMD | 95% | View |
| 475SMH035M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 4.7UF 20% 35V SMD | 85% | View |
| 865080640004 | Würth Elektronik | CAP ALUM 4.7UF 20% 50V SMD | 74% | View |
| AVEZ475M50C12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 4.7UF 20% 50V SMD | 71% | View |
| 35SZV4.7M4X5.5 | Rubycon | CAP ALUM 4.7UF 20% 35V SMD | 67% | View |
Submit your RFQ for UUP1H4R7MCL1GS and get a quote within 24 hours.
