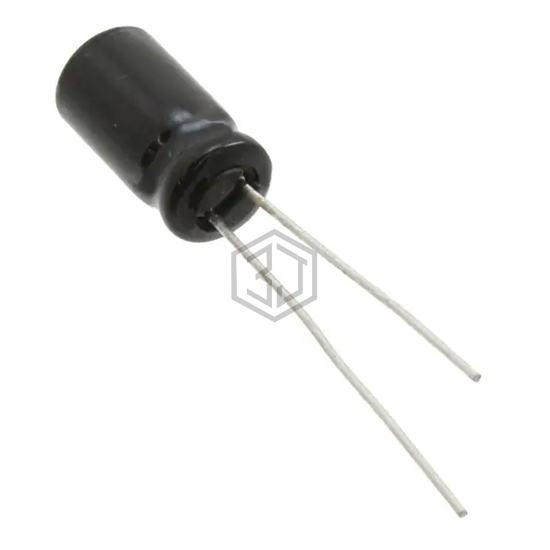

CAP ALUM 22UF 20% 35V RADIAL
UVP1V220MED1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 5,657
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 73 mA @ 120 Hz |
| Ripple Current @ High Frequency | 146 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVP1V220MED1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UVZ1V220MDD1TD | Nichicon | CAP ALUM 22UF 20% 35V RADIAL | 91% | View |
| ECA-1HEN220 | Panasonic Electronic Components | CAP ALUM 22UF 20% 50V RADIAL TH | 83% | View |
| 226TLS050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22UF 20% 50V AXIAL | 77% | View |
| EGXE800ELL220MH12D | United Chemi-Con | CAP ALUM 22UF 20% 80V RADIAL | 74% | View |
| 226CKE100M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22UF 20% 100V RADIAL | 63% | View |
| 50RX3022MTA8X11.5 | Rubycon | CAP ALUM 22UF 20% 50V RADIAL | 59% | View |
Submit your RFQ for UVP1V220MED1TA and get a quote within 24 hours.
