Cornell Dubilier / Illinois Capacitor

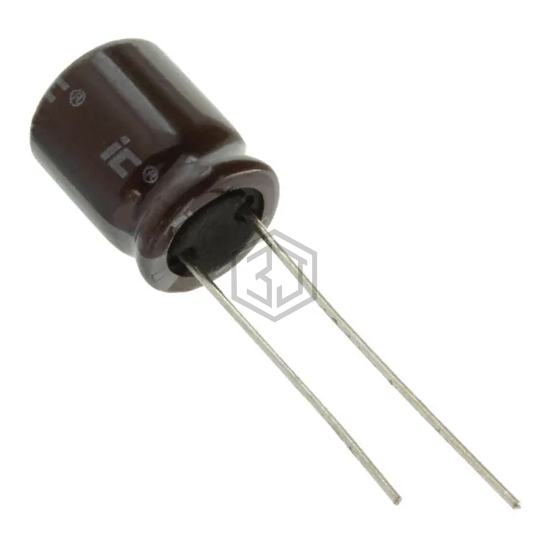

CAP ALUM 22UF 20% 100V RADIAL
226CKE100M is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 22UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 4,090
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 6.029Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 95 mA @ 120 Hz |
| Ripple Current @ High Frequency | 218.5 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPW2A220MPD1CV | Nichicon | CAP ALUM 100V POLAR | 91% | View |
| MAL214279229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 100V RADIAL | 87% | View |
| RUK220M1JBK-1012S | Surge | CAP ALUM 63V POLAR | 83% | View |
| EGXE800ELL220MH12D | United Chemi-Con | CAP ALUM 22UF 20% 80V RADIAL | 73% | View |
| 860020773011 | Würth Elektronik | CAP ALUM 22UF 20% 63V RADIAL | 69% | View |
| 50RX3022MTA8X11.5 | Rubycon | CAP ALUM 22UF 20% 50V RADIAL | 65% | View |
