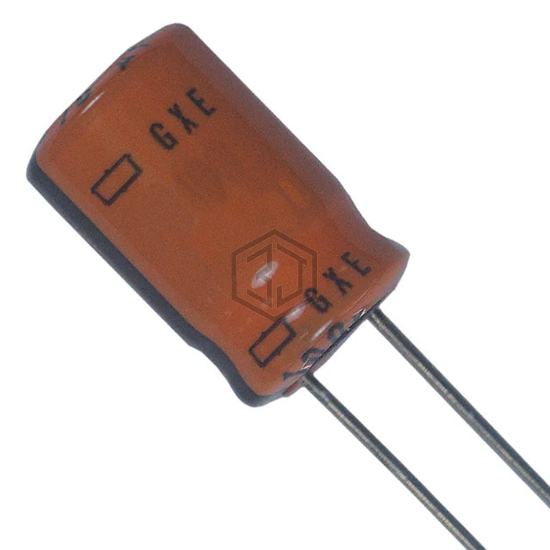

CAP ALUM 22UF 20% 80V RADIAL
EGXE800ELL220MH12D is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 22UF 20% 80V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage - rated 80 V, package / case Radial, Can.
In Stock: 5,544
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 60 mA @ 120 Hz |
| Ripple Current @ High Frequency | 150 mA @ 100 kHz |
| Impedance | 1.5 Ohms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBW1J220MPD1TD | Nichicon | CAP ALUM 22UF 20% 63V RADIAL | 86% | View |
| RUK220M1VBK-0811S | Surge | CAP ALUM 35V POLAR | 74% | View |
| RUK220M1JBK-1012S | Surge | CAP ALUM 63V POLAR | 74% | View |
| MAL211838229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 63V AXIAL | 69% | View |
| MAL211829229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 100V AXIAL | 66% | View |
| EGXE161ELL220MJ20S | United Chemi-Con | CAP ALUM 22UF 20% 160V RADIAL | 56% | View |
Submit your RFQ for EGXE800ELL220MH12D and get a quote within 24 hours.
