CAP ALUM 22UF 20% 350V RADIAL

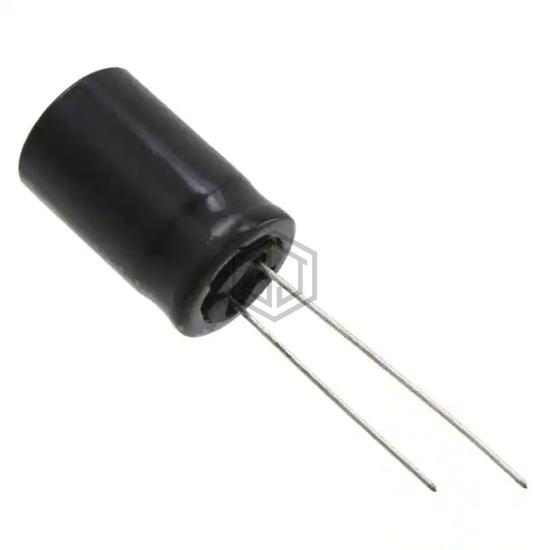

UVK2V220MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 350V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 350 V, package / case Radial, Can.
In Stock: 3,596
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 150 mA @ 120 Hz |
| Ripple Current @ High Frequency | 240 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVK2V220MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UVK2E220MPD1TD | Nichicon | CAP ALUM 22UF 20% 250V RADIAL | 90% | View |
| 50RX3022MTA8X11.5 | Rubycon | CAP ALUM 22UF 20% 50V RADIAL | 76% | View |
| UVR2A220MED1TA | Nichicon | CAP ALUM 22UF 20% 100V RADIAL | 74% | View |
| UVR2C220MPD1CA | Nichicon | CAP ALUM 160V POLAR | 72% | View |
| URS2G220MHD6 | Nichicon | CAP ALUM 22UF 20% 400V RADIAL | 66% | View |
| 226CKE100M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22UF 20% 100V RADIAL | 66% | View |
