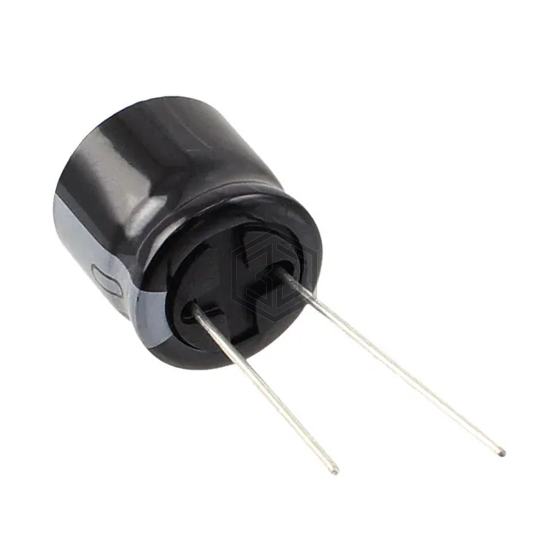

CAP ALUM 22UF 20% 400V RADIAL
URS2G220MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 4,638
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 280 mA @ 120 Hz |
| Ripple Current @ High Frequency | 448 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ULD2W220MHD6TN | Nichicon | CAP ALUM 22UF 20% 450V RADIAL | 92% | View |
| UBT2A220MPD | Nichicon | CAP ALUM 22UF 20% 100V RADIAL | 74% | View |
| RXQ220M2DBK-1020S | Surge | CAP ALUM 200V POLAR | 68% | View |
| UVK2V220MHD | Nichicon | CAP ALUM 22UF 20% 350V RADIAL | 66% | View |
| RXQ220M2CBK-1016S | Surge | CAP ALUM 160V POLAR | 66% | View |
| UVR2D220MPD1AA | Nichicon | CAP ALUM 200V POLAR | 60% | View |
Submit your RFQ for URS2G220MHD6 and get a quote within 24 hours.
