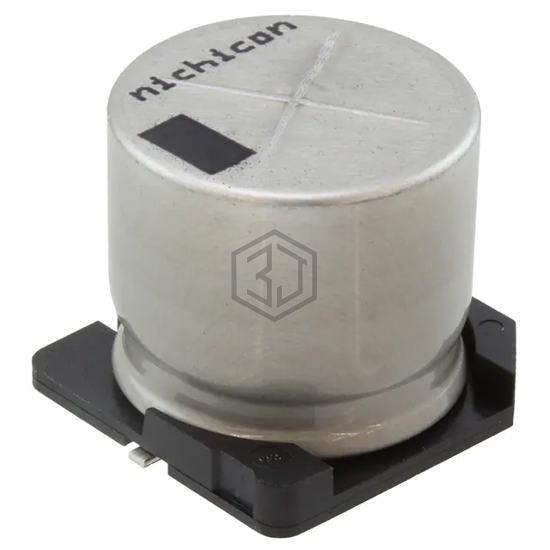

CAP ALUM 22UF 20% 200V SMD
UUJ2D220MNQ1ZD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 200V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - SMD.
In Stock: 2,426
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 105 mA @ 120 Hz |
| Ripple Current @ High Frequency | 168 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | 0.535" L x 0.535" W (13.60mm x 13.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UUJ2D220MNQ1ZD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FC1E220P | Panasonic Electronic Components | CAP ALUM 22UF 20% 25V SMD | 75% | View |
| AFK226M35C12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 35V SMD | 75% | View |
| UZ226M050HEHTA | Aillen | CAP ALUM 22UF 20% 50V SMD | 71% | View |
| UZ226M025HDHTA | Aillen | CAP ALUM 22UF 20% 25V SMD | 70% | View |
| EEE-FK1J220XL | Panasonic Electronic Components | CAP ALUM 22UF 20% 63V SMD | 67% | View |
| UUX1H220MCL6GS | Nichicon | CAP ALUM 22UF 20% 50V SMD | 56% | View |
Submit your RFQ for UUJ2D220MNQ1ZD and get a quote within 24 hours.
