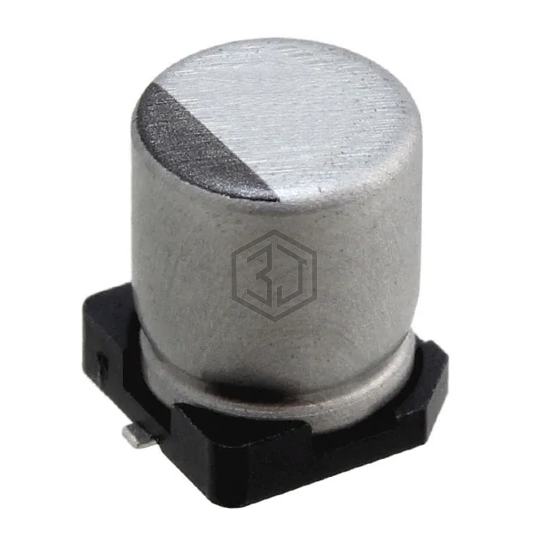

CAP ALUM 22UF 20% 50V SMD
UUX1H220MCL6GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 3,022
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 64 mA @ 120 Hz |
| Ripple Current @ High Frequency | 106.88 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL213961229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 50V SMD | 93% | View |
| EEE-FN1H220UR | Panasonic Electronic Components | CAP ALUM 22UF 20% 50V SMD | 91% | View |
| UE226M063HEJTA | Aillen | CAP ALUM 22UF 20% 63V SMD | 87% | View |
| EEE-FK0J220AR | Panasonic Electronic Components | CAP ALUM 22UF 20% 6.3V SMD | 73% | View |
| EXV226M035A9DAA | KEMET | CAP ALUM 22UF 20% 35V SMD | 66% | View |
| AFK226M35C12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 35V SMD | 64% | View |
Submit your RFQ for UUX1H220MCL6GS and get a quote within 24 hours.
