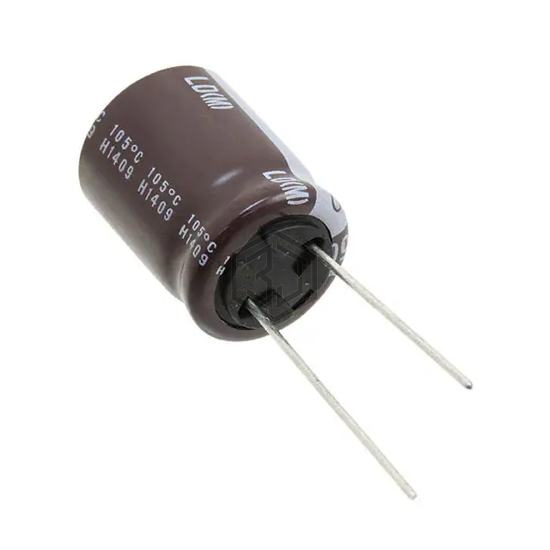

CAP ALUM 22UF 20% 450V RADIAL
ULD2W220MHD6TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 9,736
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 20000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 292 mA @ 120 Hz |
| Ripple Current @ High Frequency | 525.6 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
ULD2W220MHD6TN is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCS2D220MPD | Nichicon | CAP ALUM 22UF 20% 200V RADIAL | 74% | View |
| UBT2A220MPD | Nichicon | CAP ALUM 22UF 20% 100V RADIAL | 72% | View |
| RXQ220M2CBK-1020S | Surge | CAP ALUM 160V POLAR | 69% | View |
| RXQ220M2DBK-1020S | Surge | CAP ALUM 200V POLAR | 69% | View |
| RXQ220M2CBK-1016S | Surge | CAP ALUM 160V POLAR | 61% | View |
| 25YXF22MEFCTA5X11 | Rubycon | CAP ALUM 22UF 20% 25V RADIAL | 56% | View |
Submit your RFQ for ULD2W220MHD6TN and get a quote within 24 hours.
