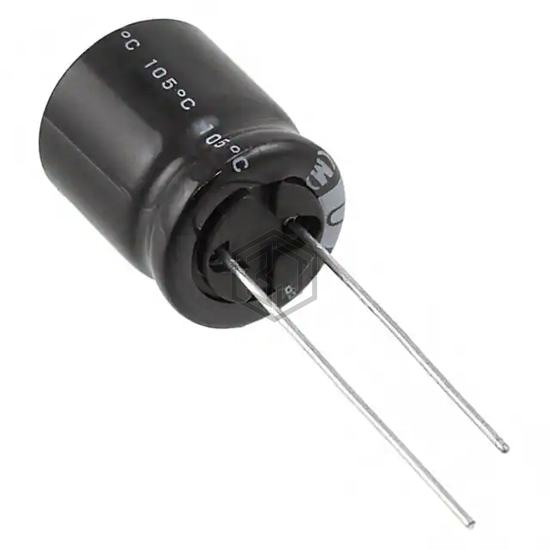

CAP ALUM 180UF 20% 100V RADIAL
UPW2A181MHD6TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 180UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 123
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 487.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 750 mA @ 100 kHz |
| Impedance | 130 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW2A181MHD6TN is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41858D9187M | EPCOS - TDK Electronics | CAP ALUM 180UF 20% 100V RADIAL | 88% | View |
| UPM2A181MHD6 | Nichicon | CAP ALUM 180UF 20% 100V RADIAL | 75% | View |
| UPJ1H181MHD6 | Nichicon | CAP ALUM 180UF 20% 50V RADIAL | 74% | View |
| UPW1J181MHD6TO | Nichicon | CAP ALUM 180UF 20% 63V RADIAL | 73% | View |
| ELXY500ETD181MJ20S | United Chemi-Con | CAP ALUM 180UF 20% 50V RADIAL | 67% | View |
| 860080374008 | Würth Elektronik | CAP ALUM 180UF 20% 16V RADIAL | 61% | View |
