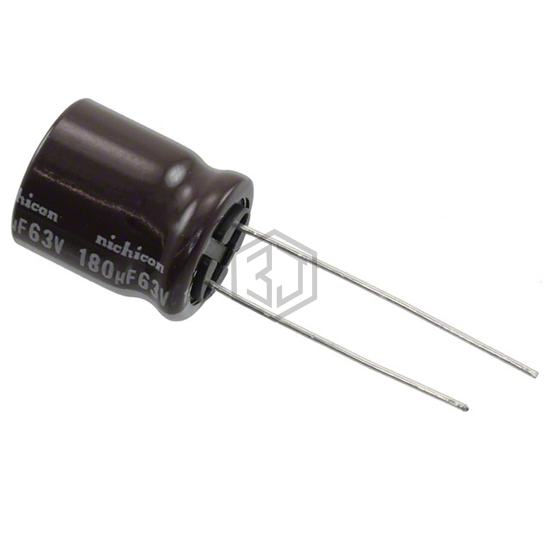

CAP ALUM 180UF 20% 63V RADIAL
UPW1J181MHD6TO is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 180UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 1,194
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 663 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.02 A @ 100 kHz |
| Impedance | 150 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1J181MHD6TO is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPM1J181MPD | Nichicon | CAP ALUM 180UF 20% 63V RADIAL | 86% | View |
| UPJ1H181MPD1TD | Nichicon | CAP ALUM 180UF 20% 50V RADIAL | 86% | View |
| B41858D9187M | EPCOS - TDK Electronics | CAP ALUM 180UF 20% 100V RADIAL | 79% | View |
| ELXY500ETD181MJ20S | United Chemi-Con | CAP ALUM 180UF 20% 50V RADIAL | 74% | View |
| 860080374008 | Würth Elektronik | CAP ALUM 180UF 20% 16V RADIAL | 55% | View |
| 601D187F250HP1 | Vishay Sprague | CAP ALUM 180UF 250V AXIAL | 52% | View |
