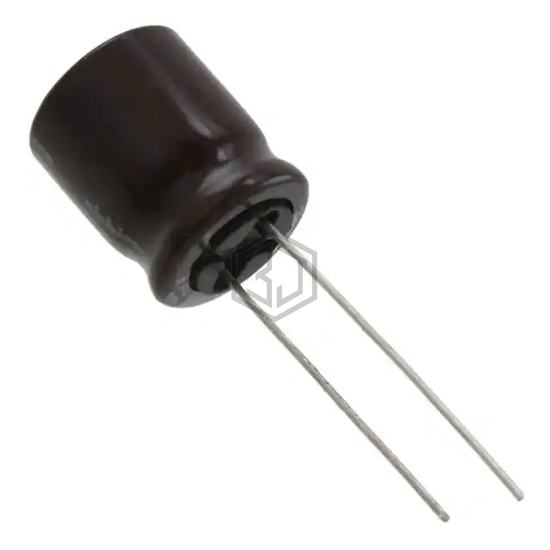

CAP ALUM 180UF 20% 50V RADIAL
UPJ1H181MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 180UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 2,629
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 605 mA @ 120 Hz |
| Ripple Current @ High Frequency | 845 mA @ 10 kHz |
| Impedance | 120 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPJ1H181MHD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL213631181E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 180UF 20% 50V RADIAL | 86% | View |
| 672D187H040DM2C | Vishay Sprague | CAP ALUM 180UF 40V RADIAL | 86% | View |
| UPW1J181MHD6TO | Nichicon | CAP ALUM 180UF 20% 63V RADIAL | 85% | View |
| UPW1J181MHH6 | Nichicon | CAP ALUM 180UF 20% 63V RADIAL | 85% | View |
| B41858D9187M | EPCOS - TDK Electronics | CAP ALUM 180UF 20% 100V RADIAL | 69% | View |
| EEU-FC1E181BJ | Panasonic Electronic Components | CAP ALUM 180UF 20% 25V RADIAL | 62% | View |
Submit your RFQ for UPJ1H181MHD6 and get a quote within 24 hours.
