CAP ALUM 22UF 20% 16V RADIAL

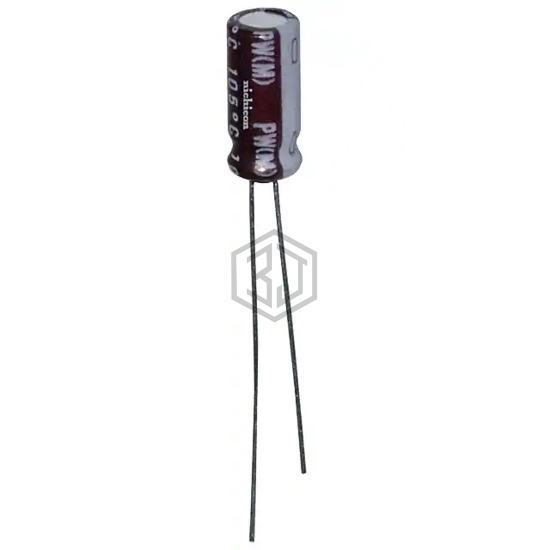

UPW1C220MDD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 6,437
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 54 mA @ 120 Hz |
| Ripple Current @ High Frequency | 180 mA @ 100 kHz |
| Impedance | 600 mOhms |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.433" (11.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW1C220MDD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEA-GA1C220H | Panasonic Electronic Components | CAP ALUM 22UF 20% 16V RADIAL | 78% | View |
| UMF1C220MDD1TE | Nichicon | CAP ALUM 22UF 20% 16V RADIAL | 75% | View |
| UPW2A220MPH | Nichicon | CAP ALUM 22UF 20% 100V RADIAL | 70% | View |
| UPV1H220MGD1TA | Nichicon | CAP ALUM 22UF 20% 50V RADIAL | 68% | View |
| UPW2A220MPD1CV | Nichicon | CAP ALUM 100V POLAR | 67% | View |
| UBW1J220MPD1TD | Nichicon | CAP ALUM 22UF 20% 63V RADIAL | 58% | View |
