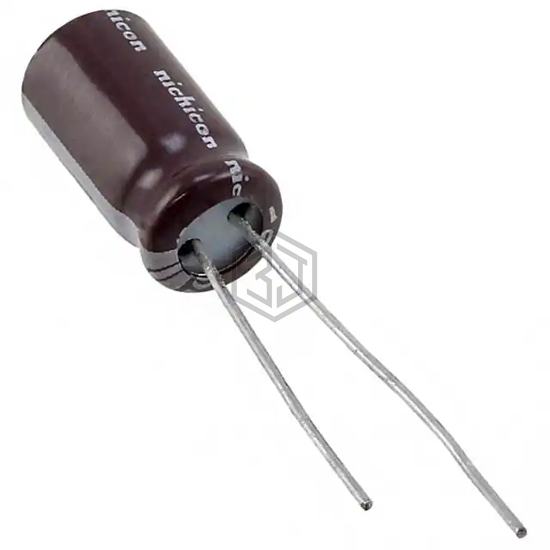

CAP ALUM 22UF 20% 50V RADIAL
UPV1H220MGD1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 5,813
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 195 mA @ 100 kHz |
| Impedance | 910 mOhms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPV1H220MGD1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UKA1H220MDD1TD | Nichicon | CAP ALUM 22UF 20% 50V RADIAL | 88% | View |
| EEU-FC1J220H | Panasonic Electronic Components | CAP ALUM 22UF 20% 63V RADIAL | 85% | View |
| UVZ1J220MDD | Nichicon | CAP ALUM 22UF 20% 63V RADIAL | 80% | View |
| UVZ2A220MED1TD | Nichicon | CAP ALUM 22UF 20% 100V RADIAL | 70% | View |
| UVZ1V220MDD1TD | Nichicon | CAP ALUM 22UF 20% 35V RADIAL | 70% | View |
| UPW1C220MDD | Nichicon | CAP ALUM 22UF 20% 16V RADIAL | 68% | View |
