CAP ALUM 22UF 20% 100V RADIAL

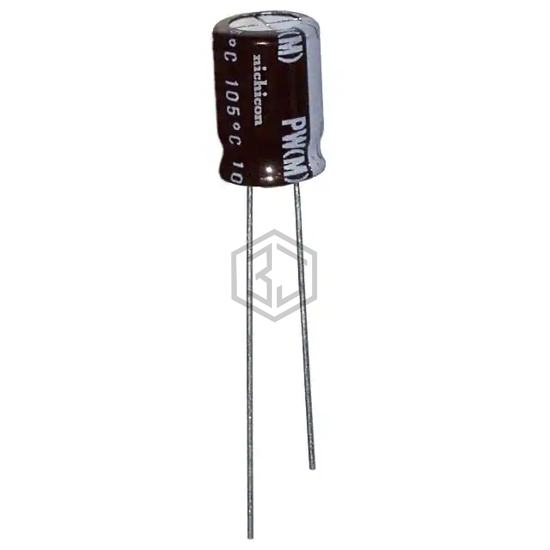

UPW2A220MPH is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 6,278
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 69 mA @ 120 Hz |
| Ripple Current @ High Frequency | 230 mA @ 100 kHz |
| Impedance | 680 mOhms |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.453" (11.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW2A220MPH is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPW2A220MPD1CV | Nichicon | CAP ALUM 100V POLAR | 100% | View |
| UVZ2A220MED1TD | Nichicon | CAP ALUM 22UF 20% 100V RADIAL | 88% | View |
| EKMG101EFC220MHB5D | United Chemi-Con | CAP ALUM 22UF 20% 100V RADIAL | 85% | View |
| UVZ1J220MDD | Nichicon | CAP ALUM 22UF 20% 63V RADIAL | 74% | View |
| EEU-FC1J220H | Panasonic Electronic Components | CAP ALUM 22UF 20% 63V RADIAL | 65% | View |
| UBW1J220MPD1TD | Nichicon | CAP ALUM 22UF 20% 63V RADIAL | 61% | View |
Submit your RFQ for UPW2A220MPH and get a quote within 24 hours.
