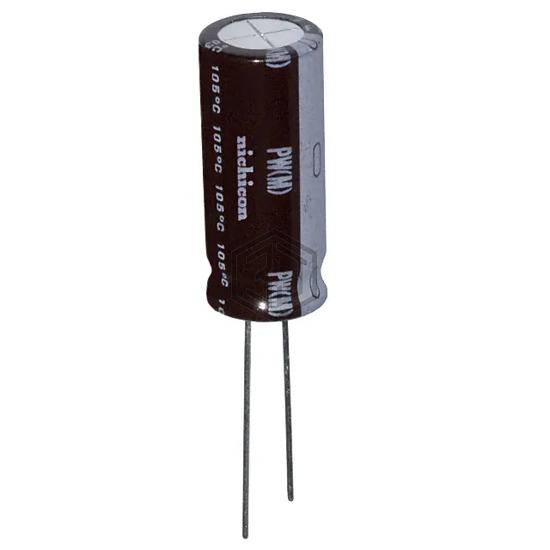

CAP ALUM 4700UF 20% 6.3V RADIAL
UPW0J472MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4700UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 6,930
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 2.555 A @ 100 kHz |
| Impedance | 25 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.240" (31.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW0J472MHD6 is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41858C3478M000 | EPCOS - TDK Electronics | CAP ALUM 4700UF 20% 10V RADIAL | 79% | View |
| UPA1C472MHD6TN | Nichicon | CAP ALUM 4700UF 20% 16V RADIAL | 76% | View |
| URZ0J472MHD | Nichicon | CAP ALUM 4700UF 20% 6.3V RADIAL | 74% | View |
| ELXZ160ELL472MM25S | United Chemi-Con | CAP ALUM 4700UF 20% 16V RADIAL | 71% | View |
| EEU-FK1E472S | Panasonic Electronic Components | CAP ALUM 4700UF 20% 25V RAD TH | 68% | View |
| MAL211844472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 10V T/H | 53% | View |
Submit your RFQ for UPW0J472MHD6 and get a quote within 24 hours.
