Panasonic Electronic Components

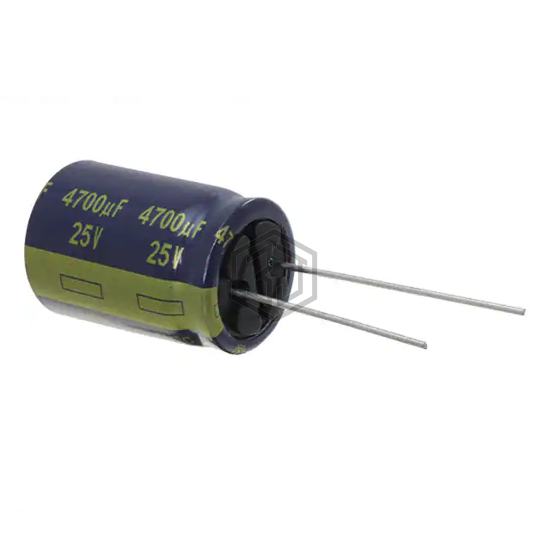

CAP ALUM 4700UF 20% 25V RAD TH
EEU-FK1E472S is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 4700UF 20% 25V RAD TH. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 7,289
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 2.28 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.85 A @ 100 kHz |
| Impedance | 18 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RXK472M1EBK-1836S | Surge | CAP ALUM 25V POLAR | 95% | View |
| UVZ1E472MHD | Nichicon | CAP ALUM 4700UF 20% 25V RADIAL | 84% | View |
| EKMG250ELL472MLN3S | United Chemi-Con | CAP ALUM 4700UF 20% 25V RADIAL | 83% | View |
| UPA1C472MHD6TN | Nichicon | CAP ALUM 4700UF 20% 16V RADIAL | 82% | View |
| 478RZM025M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 4700UF 20% 25V RADIAL | 75% | View |
| SEK472M016ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 4700UF 20% 16V RADIAL | 71% | View |
