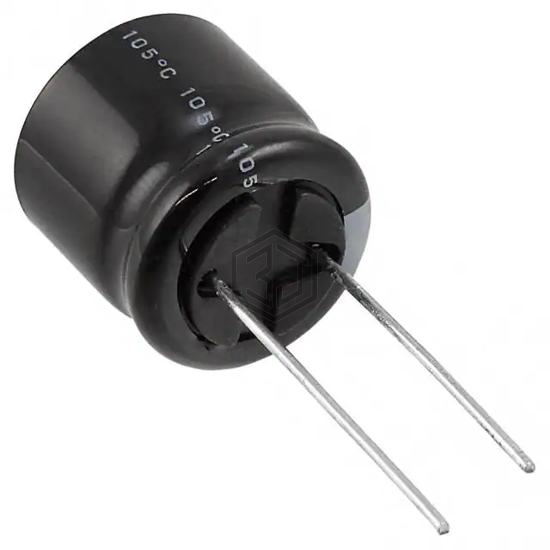

CAP ALUM 4700UF 20% 6.3V RADIAL
URZ0J472MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4700UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 7,273
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.01 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.1615 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| URZ1A472MHD | Nichicon | CAP ALUM 4700UF 20% 10V RADIAL | 81% | View |
| EEU-HD1A472 | Panasonic Electronic Components | CAP ALUM 4700UF 20% 10V RADIAL | 75% | View |
| UPW0J472MHD6 | Nichicon | CAP ALUM 4700UF 20% 6.3V RADIAL | 74% | View |
| MAL211844472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 10V T/H | 72% | View |
| B41858C3478M000 | EPCOS - TDK Electronics | CAP ALUM 4700UF 20% 10V RADIAL | 58% | View |
| EKMG250ELL472MLN3S | United Chemi-Con | CAP ALUM 4700UF 20% 25V RADIAL | 55% | View |
Submit your RFQ for URZ0J472MHD and get a quote within 24 hours.
