CAP ALUM 1200UF 20% 25V RADIAL

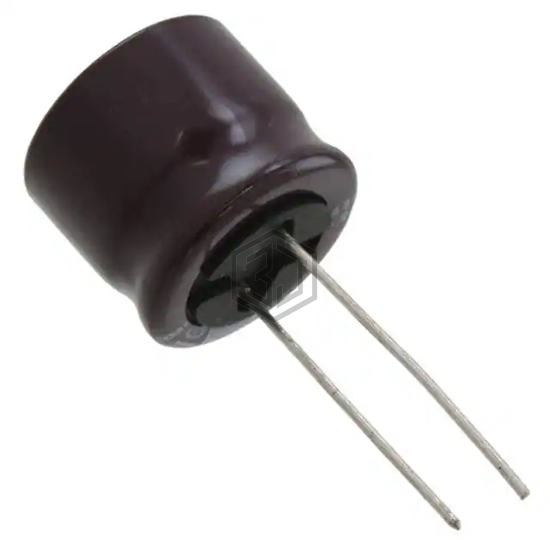

UPM1E122MHD6TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1200UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 9,204
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.6 A @ 10 kHz |
| Impedance | 39 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPM1E122MHD6TN is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC1E122SB | Panasonic Electronic Components | CAP ALUM 1200UF 20% 25V RADIAL | 92% | View |
| EEU-FC1V122B | Panasonic Electronic Components | CAP ALUM 1200UF 20% 35V RADIAL | 76% | View |
| B41858C4128M000 | EPCOS - TDK Electronics | CAP ALUM 1200UF 20% 16V RADIAL | 70% | View |
| ELXY500ELL122ML35S | United Chemi-Con | CAP ALUM 1200UF 20% 50V RADIAL | 69% | View |
| EEU-FC1A122B | Panasonic Electronic Components | CAP ALUM 1200UF 20% 10V RADIAL | 65% | View |
| 301R122U063GL2 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1200UF 63V RADIAL | 56% | View |
